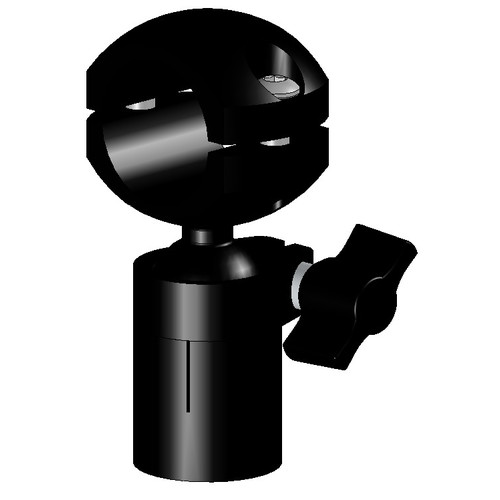

Kugelgelenkhalterung G20 mit Schelle Ø25,4 (1") schwarz

pcs
add to basket
Item no. H2127
Price net € 37.55
Price € 44.69
  Shipping costs will be added, net prices excl. 19% VAT.


discounts Continuous quantity discount: If you put the desired amount into shopping basket, you will see the given discount (starting from 3 pcs in 1 pc steps).

Delivery time  immediately available (in stock)

Technical specifications
Weight ca. 84 g
Color black
Material/s aluminium (anodized), stainless steal, plastics
System size G20
Adjustment range tilt ±45°, rotation 360°
Static bearing force at least 60 N (6 kg)
Ball's torsional strength minimum 8 Nm
Ball fixation with wing screw or socket head screw, both are enclosed
Clamping range [mm] 24.4-25.4
Article Description
Robuste Ganzmetall-Kugelgelenkhalterung mit Schelle für die präzise Positionierung von:

- Positionslaser
- Lichtschranken
- Luftdüsen
- Kühlwasserdüsen
- Spotlights
Article Variants
    Clamping range [mm]
   8-911-1217-1819-2024.4-25.4
Colorsilver
H2134: Kugelgelenkhalterung G20 mit Schelle Ø9 silbern
H2112: Kugelgelenkhalterung G20 mit Schelle Ø12 silbern
H2136: Kugelgelenkhalterung G20 mit Schelle Ø18 silbern
H2118: Kugelgelenkhalterung G20 mit Schelle Ø20 silbern
H2126: Kugelgelenkhalterung G20 mit Schelle Ø25,4 (1") silbern
black
H2113: Kugelgelenkhalterung G20 mit Schelle Ø12 schwarz
H2137: Kugelgelenkhalterung G20 mit Schelle Ø18 schwarz
H2119: Kugelgelenkhalterung G20 mit Schelle Ø20 schwarz
H2127: Kugelgelenkhalterung G20 mit Schelle Ø25,4 (1") schwarz
Examples of use

Example 1004: Laser mit Nutenstein an Aluminiumprofil montiert

Description

Laser mit Nutenstein auf Aluminiumprofil montiert. Hierfür wird die zentrale Bohrung (für Schrauben bis M8) im Boden der Kugelgelenkhalterung verwendet.
Passende Nutensteine bekommen Sie meist direkt bei Ihrem Aluminium-Profil-Hersteller.

Für die genaue Positionierung von z. B.:
- Markierlasern
- Positionierlasern
- Luftdüsen
- ...

Used Product/s

H2126

Example useful?

less 1/5 2/5 3/5 4/5 5/5 much   –    3.6 of 5 points in 12 votesvote

Example 1085: Laserhalterung auf Profilschine montiert

Description

Die Halterung lässt sich auf der Profilschine verschieben, ohne, dass der Kugekopf abgenommen werden muss.

Used Product/s

FS208
K2114

Example useful?

less 1/5 2/5 3/5 4/5 5/5 much   –    4.0 of 5 points in 7 votesvote
